Plyboo Linear sound

The PlybooSound panel brings together the elegance of our bamboo architectural designs with proprietary sound dampening QuietWall™ technology to help reduce ambient noise. Great for hospitality, public venues and large open work spaces. Plyboo’s proprietary RealCore™ technology insures that exposed cores are consistent and our bi-directional construction allows for maximum stability. Quiet never looked better! Available in 8 different patterns and colors.

PlybooSound can help to contribute towards 3 LEED credits. It is made from 100% FSC certified Bamboo which is also rapidly renewable and free of Urea Formaldehyde. Sheet sizes are 4’x8′ X 3/4″ thick and available pre-finished or unfinished.

Specifications

Linear Sound Panel Design LS11

Specifications
CSI 3-part specification – LinearSound Collection
Plyboo Ceiling Information

Sound Absorption
QuietWall™ Technology (Test Result)

Core Composition
RealCore™

Color
Amber or Natural

Material
100% Bamboo

Size
3/4” x 473/4” x 953/4

Metric
19mm x 1213mm x 2432mm

Weight
80 lbs

Surface Texture
Prefinished or Unfinished

Fire Resistance Classification
Class C (Class B available)

Noise Reduction Coefficient (NRC)
avg. 0.70

Sound Transmission Class (STC)
avg. 0.00

Emission Testing – CA Section 01350 Protocol
No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

BP-V4896A/LS11
Carb Phase II Compatible

Installation Guide

Environmental Product Declaration & Life-Cycle Analysis

Warranty

Samples

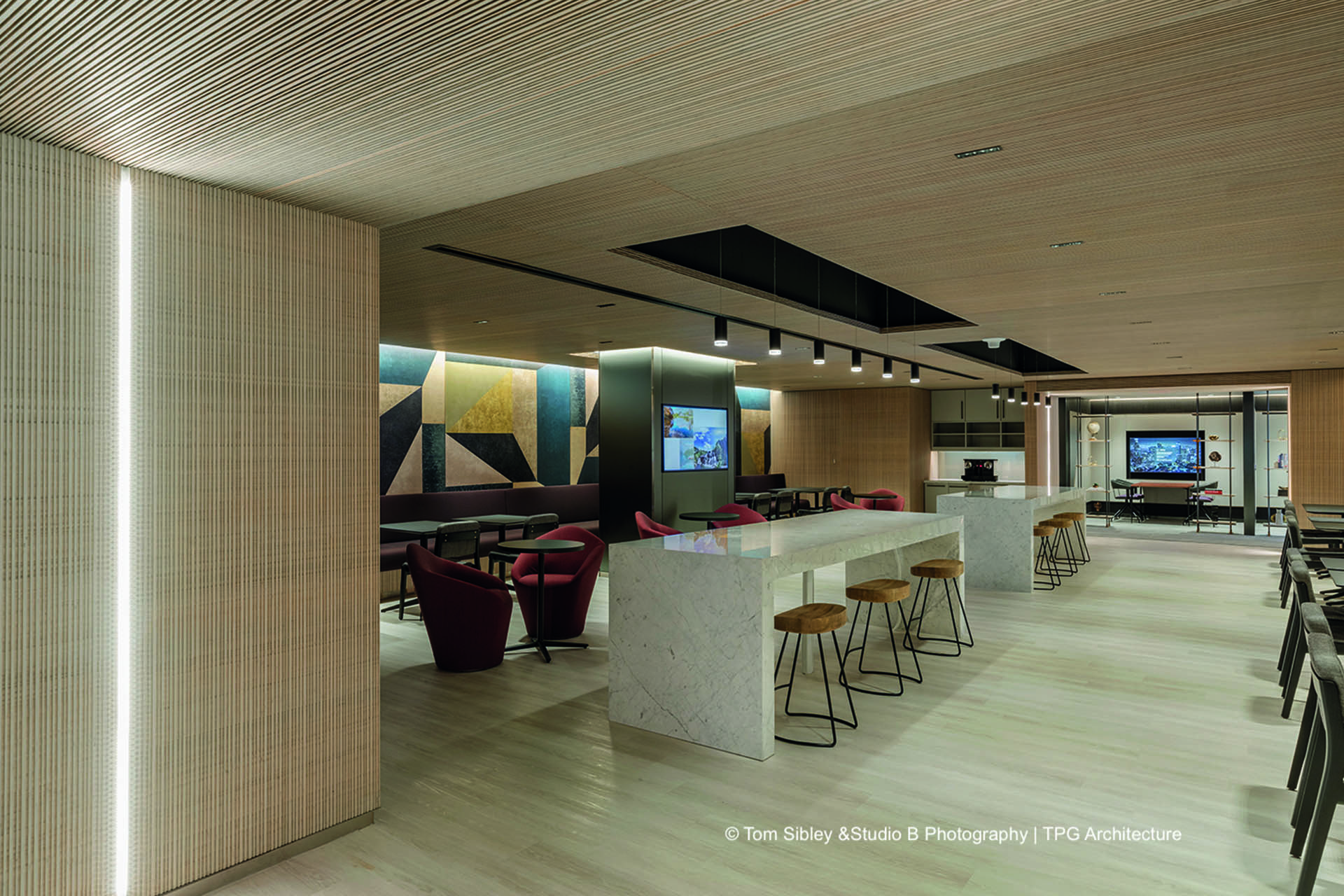

Installation examples
